Feature:
1. BASIC VALUE: There are two eyepieces in this microscope kit, with 3.5 to 100 times continuous zoom magnification, to meet your daily work and learning needs.
2. MICROSCOPE CAMERA: Built in 41MP HD camera image sensor and 4K video recording make observation easier and more interesting.
3. FLEXIBLE ROTATION: Our microscope has a solid metal bracket. The metal swing arm can be adjusted by 180 ° with the design of rotating shaft.
4. LED RING LAMP: The lamp is composed of 144 small led bulbs. The light of the lamp is very uniform and soft, without stroboscopic, and shadow. Provides multi directional lighting, so that you will no longer have the frustration of insufficient brightness or insufficient observation angle in use.
5. FIRM FIXATION: The bracket in the lens group can firmly fix the lens, making your observation process more stable and safer.
6. APPLICABLE SCENARIOS: Our microscope is applicable to microelectronics, mold, accuracy machinery, jewelry, clocks, maintenance school demonstration and other fields. Suitable for observing the external microstructure of large objects.
Specification:
Item Type: Trinocular Microscope
Material: Aluminum Alloy
Remote Control Battery: 1 x CR2025 150mAh button battery (shipped with built in battery)
Characteristic:
1. Widely used in microelectronics, mold, jewelry, printing, mobile phone maintenance schools and other fields.
2. Especially suitable for observing the surface microstructure of large objects.
3. Made of premium materials, solid and durable, and has a long service life.
4. HD camera, equipped with 41MP CMOS sensor 1/1.8 in, with high definition display interface USB port.
5. Strict quality control and quality assurance, high safety factor, can be used safely.

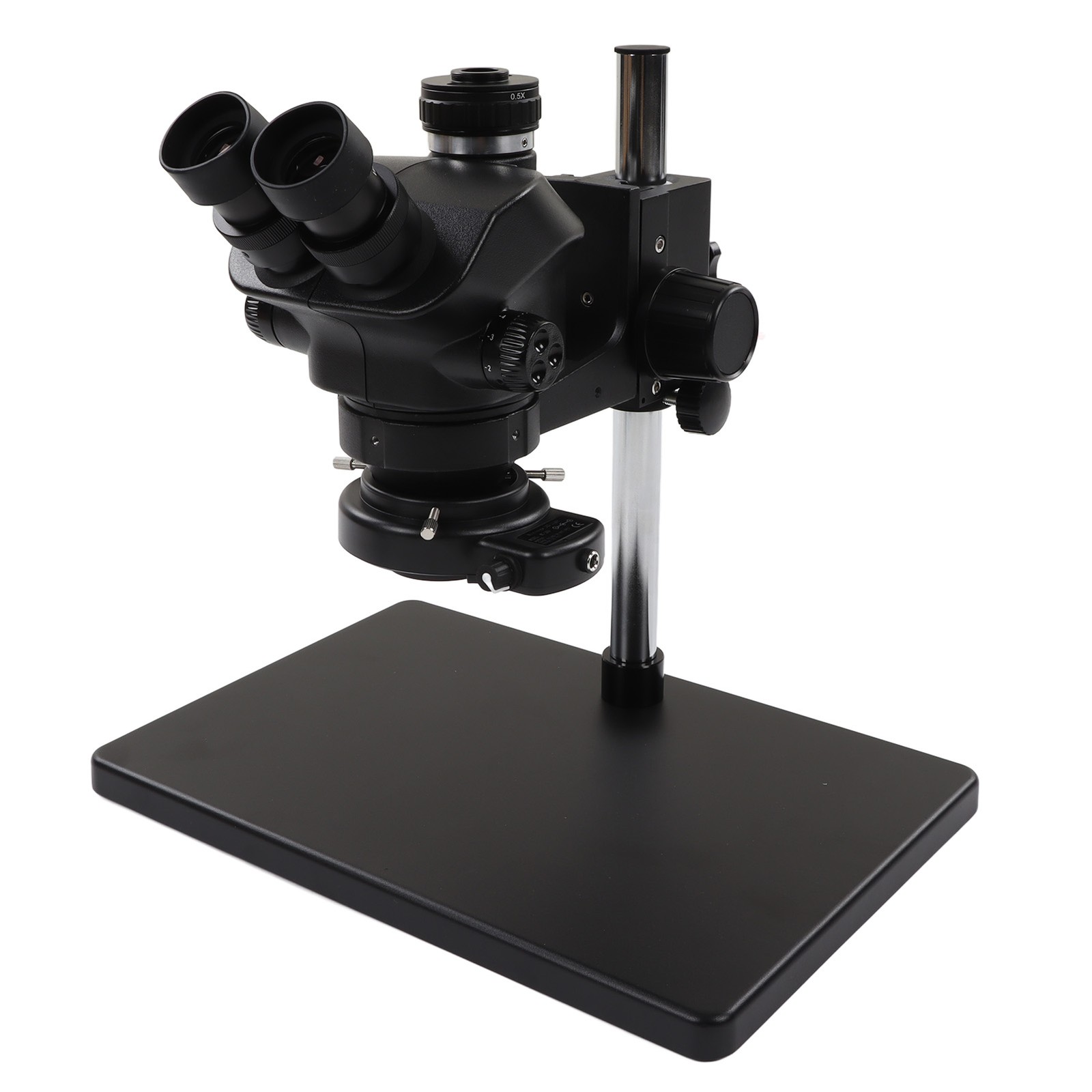

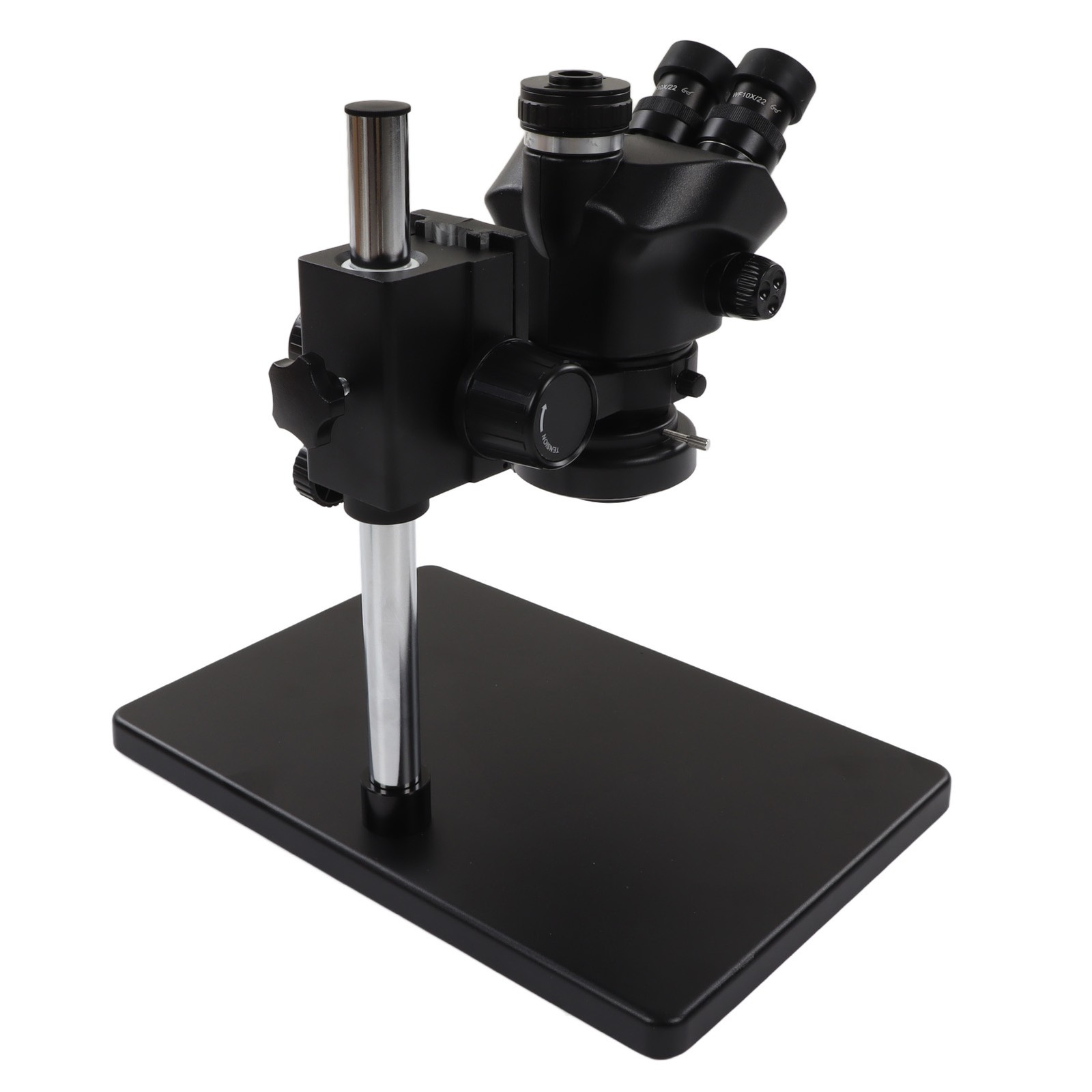

Three Eye Microscope Specification:
Head: 45 ° tilt, 360 ° rotation, three eyes in focus
Eyepiece: Approx. 30mm / 1.18in ultra wide angle high eyespot WF10X 22
Target: 0.7 to 5X
Zoom Range: 6.5:1
Three Eye Port: Approx. 25mm / 0.98in photo port
Pupil Spacing: 2 1/8in to 3in (54 to 76mm)
Field of View: 1-1/4in(33mm)
Working Distance: 7X to 50X (Approx. 100mm / 3.94in) Use 0.5 times objective 3.5x to 25X (Approx. 200mm / 7.87in)
Use 2x Objective 14X to 100X (Approx. 50mm / 1.97in)
Head Mounting Size: 3in (76mm) diameter
Accessory Installation Size: 1- 7/8in (48mm internal thread) diameter
3.5X to 100X continuous zoom magnification
45° tilt three eye analog head with ultra wide angle high eye eyespot eyepiece
Three eye port for adding photo or video functions
30mm ultra wide visual field WF10X eyepiece, 20mm visual field
High resolution with high flatness and contrast
Clear stereoscopic upright image under wide field of vision
Crystal original true color image
Large working distance, accurate alignment, ensuring no fatigue viewing
All optical glass elements
Accuracy frosted glass lens
Adjustable pupil spacing
Microscope Camera:
Project Type: Microscope camera
Mode: 6110
Sensor: 41MP CMOS
Optical Format: For CMOS 1/1.8 IMX334 sensor
Pixel Size: 2.0μm x 2.0μm
Interface: High definition display interface (Class A). USB (type B).
High Definition Display Interface Image Resolution: 41MP
High Definition Display Interface Output Resolution: 4K at 30FPS, 1080p at 60FPS
USB PC Output Resolution: 4K at 25FPS , 1080p at 30FPS
High Definition Display Interface Ratio: Support 4:3,16:9,16:10 screens
Small Memory Card: Up to 256GB (shipment without storage memory card)
AWB: AWB color correction, automatic, manual
R.G.B Value Setting is Independent
Exposure: Automatic, manual. AE value can be set
Crossline: 8 lines, color, width and position can be set
Scale Line: 2 lines.
Dashed Line: 2 lines, color, width and position can be set
Clarity Contrast Color Gain: Support
Monochrome Negative: Support
Mirrors: Horizontal and vertical mirrors
Language: English, Simplified Chinese, French, Spanish, Japanese, German and other languages.
Digital Zoom: Support
Output: DC12V
Power Consumption: Maximum 0.15W 12V, 0.12A
Lens Interface: C, CS port

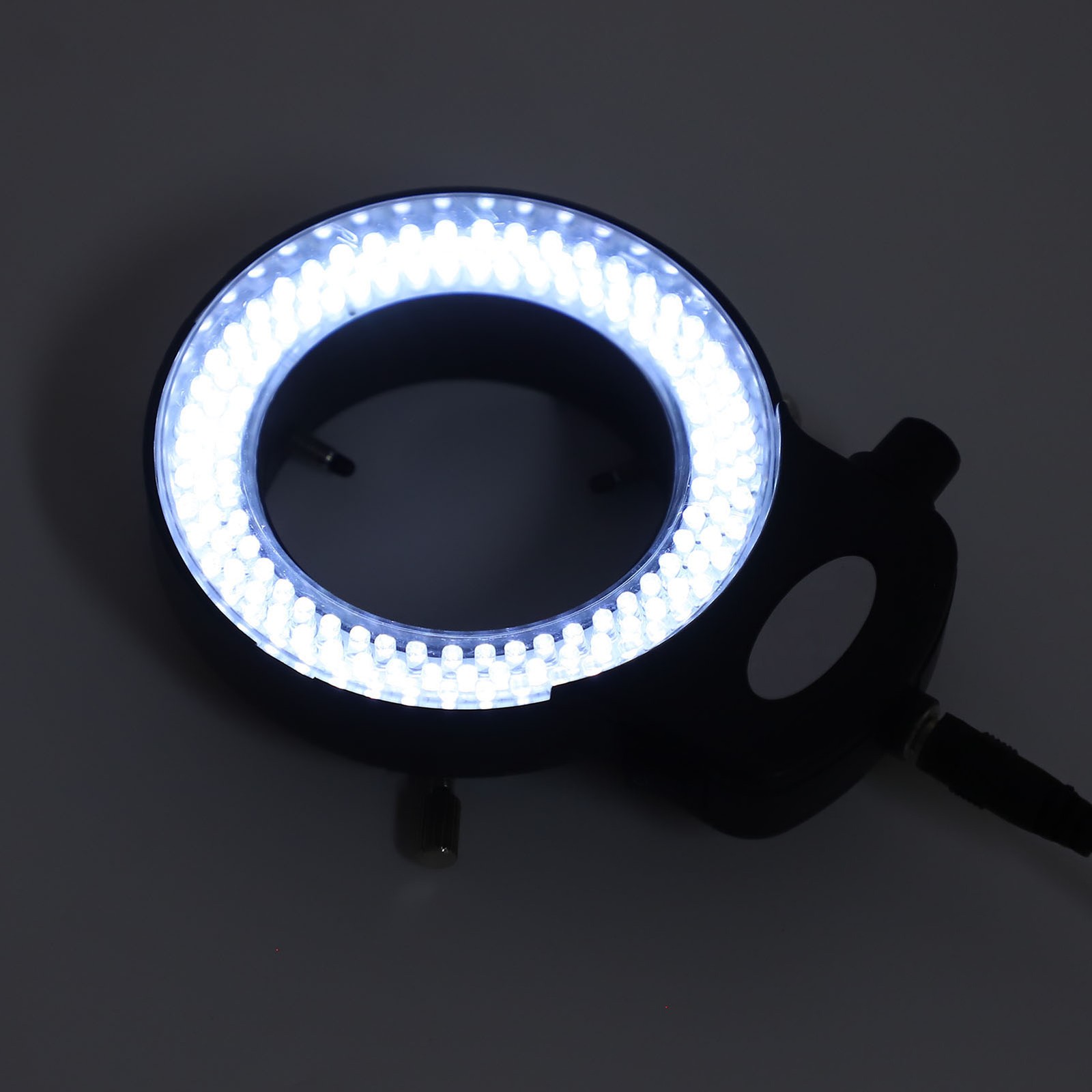

144 Bright LED Specifications:
144 bright white LED bulbs
Variable power control
Strong concentrated shadowless lighting
100000 hours of life
Working Distance: About Approx. 27 to 120mm/1.1 to 4.7in
Package List:
1 x Microscope Camera
1 x Drive
2 x Power Adapter
1 x Cable
1 x USB Cable
1 x Remote Control
2 x Manual
1 x Ring Light
1 x 0.5X C Type Install Adapter
1 x Head
4 x Accessory
4 x Lens
1 x Storage Bag
1 x Stand Plate
1 x Stand Support Rod
1 x Hex Wrench
